Stainless Steel Flagpole
Winches
Winch Handles
|
|

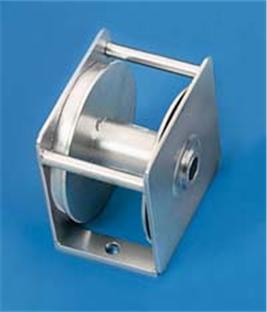

Replacement flagpole winches. These winches are available for use on
flagpoles with butt diameter of 6" or greater. These gearless winches
utilize cast bronze internal brakes which release when a winch handle is
inserted and rotational pressure is applied. The winch is locked at
any position by removing the handle which engages the brake system.
More Info... |
Click for closer view |
Stainless Steel Flagpole
Winches
(Note: be sure to order
handles below) |
|
Size |
Minimum Pole Opening |
Drum Width |
Model |
Price |
Purchase |
|
Height |
Width |
| S |
3-1/8" |
4-1/8" |
1-1/2" |
efssw1 |
$445.00 |
 |
| L |
3-5/8" |
4-1/8" |
2" |
efssw2 |
$465.00 |
|
| X-L |
6-5/8" |
4-1/8" |
5" |
efssw3 |
$745.00 |
|
|
More info..
The small size is generally used on flagpoles up to 45', the large
size is used on flagpoles from 50' through 80' . The X-large size is used on
flagpoles higher than 80'. The winch is mounted to the inside of the
flagpole with two 5/16"-18NC stainless steel bolts with mounting centers
being 3-1/2". Recommended diameters of stainless steel cable are 1/8" and
5/32". |
|
Winch Handles
|
| Handles for stainless steel winches above. This
handle is designed to be used with any of the stainless steel winches
available on this page. |
Click for closer view |
|
Winch Handle |
|
Model |
Price |
Purchase |
|
efwh1 |
$44.50 |
|
|
