Our
cone tapered ground set aluminum flagpoles are precision fabricated
from new, 6063-T6 tubing utilizing the industry's most
sophisticated, state-of-the-art manufacturing process. The conical
portion tapers approximately 1" in every 5 1/2 feet. Poles of
overall lengths of less the 38' 6" are shipped in one piece.
Longer Lengths are shipped in sections and will be factory fitted
with a self-aligning sleeve which requires no field welding. Upon
proper assembly a hair-line joint will occur.
All poles are double spiral wrapped with
protective paper and shipped in a hard fiber tube.
Warning
- Extreme care must be exercised when installing flagpoles near
overhead power lines or when digging in the vicinity of buried cable
piping. Contact your local authorities before any digging.
All foundation dimensions listed in this web
site are intended for general guidelines only in good, firm, dry
soil. It is recommended to consult an engineer for specific
foundations suited to your exact location.
STANDARD
FINISHES
Satin
Clear
Bronze
#311
Bronze
#312
Bronze
#313
Black
Special
Budget Series External halyard ground set cone tapered
aluminum flagpoles
Standard
Accessories
Gold anodized aluminum ball ornament.
Cast aluminum stationary truck w/pulley (ECS35 has a
revolving truck as standard)
Solid braided polypropylene halyard.
Cast aluminum cleat with mounting screws.
Swivel flag snaps w/vinyl covers on poles with a 3 1/2",
4" of 5" but diameter: nylon flap snaps on poles with
a 2 3/8" or 3" butt diameter.
PVC foundation sleeve (ECS30 & ECS 35 poles have a
galvanized steel sleeve as standard)
Flash collar not included as standard equipment for this
series.
We are ready to assist with your
specifications & pricing.
Specifications
- Budget Series
Diameter
Unflagged Wind
Speed /mph
Flagged Wind
Speed /mph
Model
Exposed
Height
Overall
Length
Butt
Top
Wall
Constant
w/Gust
Flag Size
Constant
W/Gust
Shipping
Weight
ECM15
15'
17'
2 3/8"
1 7/8"
.140
112mph
145mph
3'x5'
78mph
101mph
40lbs
ECM20
20'
22'
2 3/8"
1 7/8"
.140
78mph
101mph
3'x5'
59mph
76mph
45lbs
ECSS15
15'
17'
3"
1 7/8"
.125
131mph
170mph
3'x5'
93mph
120mph
45lbs
ECSS20
20'
22'
3"
1 7/8"
.125
91mph
118mph
3'x5'
71mph
92mph
50lbs
ECSS25
25'
27.5'
3"
1 7/8"
.125
69mph
89mph
4'x6'
54mph
70mph
55lbs
ESC20
20'
22'
3.5"
2 3/8"
.125
99mph
128mph
3'x5'
79mph
102mph
55lbs
ECS25
25'
27.5'
3.5"
2 3/8"
.125
75mph
97mph
4'x6'
61mph
79mph
60lbs
ECS30
30'
33'
4"
2 3/8"
.125
68mph
88mph
5'x8'
54mph
70mph
104lbs
ECS35
35'
38.5'
5"
3"
.125
65mph
84mph
6'x10'
54mph
70mph
150lbs
Economy
Extra Series External halyard ground set cone tapered
aluminum flagpoles
Standard
Accessories
Gold anodized aluminum ball ornament.
Cast aluminum revolving truck w/pulley
Solid braided polypropylene halyard.
Swivel flag snaps w/vinyl snap covers
Cast Aluminum cleat with mounting screws.
Spun aluminum flash collar.
Galvanized Steel Foundation sleeve.
Below:

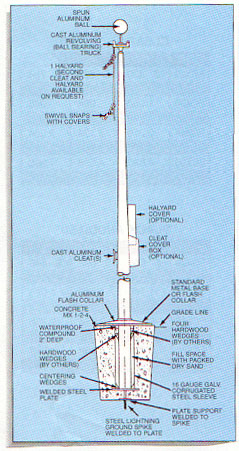

Detail Drawings of Economy $ Budget Series
Specifications
- Economy Series
Diameter
Unflagged Wind
Speed /mph
Flagged Wind
Speed /mph
Model
Exposed
Height
Overall
Length
Butt
Top
Wall
Constant
w/Gust
Flag Size
Constant
W/Gust
Shipping
Weight
ECX20
20'
23'
5"
3"
.125
191mph
284mph
3'x5'
115mph
149mph
92lbs
ECX25
25'
28'
5"
3"
.125
106mph
137mph
4'x6'
84mph
109mph
113lbs
ECX30
30'
33'
5"
3"
.125
80mph
104mph
5'x8'
66mph
85mph
128lbs
ECX35
35'
38.5'
6"
3.5"
.156
92mph
119mph
6'x10'
70mph
91mph
190lbs
ECX40
40'
44'
7"
3.5"
.156
94mph
122mph
8'x12'
70mph
91mph
297lbs
ESX50
50'
55'
8"
3.5"
.188
91mph
118mph
10'x15'
69mph
89mph
360lbs
ECX60
60'
66'
10"
4"
.188
94mph
122mph
12'x18'
68mph
88mph
520lbs
ECX70
70'
77'
10"
4"
.312
98mph
127mph
15'x25'
70mph
91mph
695lbs
Vanguard
Series Internal halyard ground set cone tapered
aluminum flagpoles
The Vanguard series
of flagpoles combine the security of a concealed halyard system with
the simplicity of a rope halyard. While lacking the convenience and
sophistication of a winch operated system, the Vanguard provides an
intelligent, economical alternative to deluxe concealed halyard
systems. The Vanguard's wire center halyard runs through a
stationary truck and across an additional halyard block and is
secured in a cam-action cleat located inside the flagpole behind a
lockable access door. All fittings for a complete installation are
included; gold anodized aluminum ball ornament, swivel flag snaps
with vinyl covers, retaining ring, counterweight, a stainless steel
quick link to make all necessary connections, spun aluminum flash

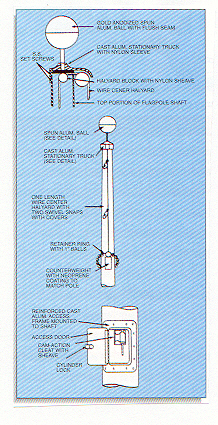

collar and galvanized steel foundation sleeve. Below: Detail drawing of
Vanguard Series.
