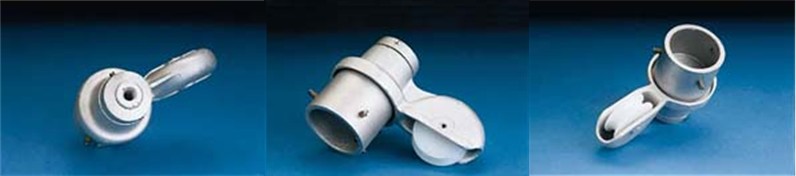

RTC-1 Series Flagpole
Truck
External Halyard - Cap Style -
Rotating - Single Pulley
Fits Flagpole top diameters: 13/8" to 33/8"
|
|
Click for a closer view. |
|
Cast aluminum construction
with a 2" outside diameter cast nylon pulley on a 1/4" stainless steel axle.
The bottom portion of the spindle is designed to fit over the top of the
flagpole and is secured with three stainless steel set screws (1/4"-20NC on
the RTC-1-2 and 5/16"-18NC on the RTC-1-238). The top of the truck is
designed to accept an ornament with a spindle threading of 1/2"-13NC as
standard but can be supplied with other sizes of threading if desired. The
ornament is secured to the truck with a 1/4"-20NC stainless steel set screw.
For ease of rotation, product life and strength, these trucks utilize
self-lubricating ball bearing assemblies. The recommended maximum halyard
diameter is 5/16".
More... |
RTC-1 Series Flagpole Truck
External Halyard - Cap
Style - Rotating - Single Pulley |
| Flagpole Diameter |
Color |
Price |
Model |
Purchase |
|
13/8" |
silver |
$79.80 |
efrtc-1-138 |
 |
|
2" |
silver |
$79.80 |
efrtc-1-2 |
|
|
23/8" |
silver |
$79.80 |
efrtc-1-238 |
|
|
More Info.
Designed to fit
over the top of small aluminum, steel, wood or fiberglass flagpoles. Medium
duty truck for 5/16" rope halyard.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
|
