HDT-1 Series Heavy Duty
Flagpole Truck
External Halyard - Threaded Style -
Rotating - Single Pulley
Fits Flagpole top diameters: up to 51/2"
|
|

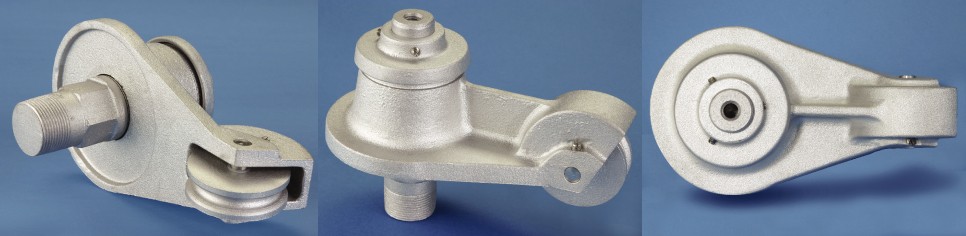

Click for a closer view. |
|
Cast aluminum construction
with a 3-7/8" outside diameter aluminum pulley on 1/2" stainless
steel axles. This truck is designed to be used on flagpoles that have up to
a 5-1/2" outside top diameter with female fitting installed. The bottom of
the spindle has a 1-1/4" NPT threading and is screwed into the top of the
flagpole while the top spindle is designed to accept an ornament with a
spindle threading of 1/2"-13NC as standard but can be supplied with other
sizes of threading. The ornament is secured to the truck with a 1/4"- 20NC
stainless steel set screw. The truck body rotates on 26 stainless steel ball
bearings on cast races. The recommended maximum halyard diameter is 3/8".
More... |
HDT-1 Series Heavy Duty Flagpole
Truck
External Halyard - Threaded
Style - Rotating - Double Pulley |
| Flagpole Diameter |
Color |
Price |
Model |
Purchase |
|
up to 51/2" |
silver |
$159.00 |
efhdt-1 |
 |
|
More Info.
Designed to be used on
flagpoles that have up to a 5-1/2" outside top diameter with a female
fitting or pole top adaptor. Heavy
duty truck for 3/8" rope halyard.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
