XHDT, XHDT-SS Flagpole
Trucks
Extra Heavy Duty
External Halyard - Threaded Style -
Rotating - Double Pulley
Fits Flagpole top diameters: up
to 123/4"
|
|

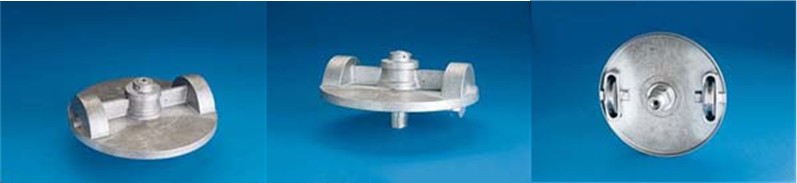

Click for a closer view. |
|
Cast aluminum construction
with 37/8" outside diameter cast aluminum pulleys on 1/2" stainless
steel axles. This truck is designed to be used on flagpoles that have up to
a 12-3/4" outside top diameter with a female fitting installed. The bottom of
the spindle has a 1-1/4" NPT threading and is screwed into the top of the
flagpole while the top spindle is designed to accept an ornament with a
spindle threading of 1/2"-13NC as standard but can be supplied with other
sizes of threading if desired. The ornament is secured to the truck with a
1/4"-20NC stainless steel set screw. For ease of rotation, product life and
strength, these trucks utilize stainless steel sealed lubricant ball bearing assemblies. The
recommended maximum halyard diameter is 3/8".
More... |
Extra Heavy Duty Flagpole Trucks
External Halyard - Threaded
Style - Rotating - Double Pulley |
| Flagpole Diameter |
Spindle Material |
Color |
Price |
Model |
Purchase |
|
up to 123/4" |
Aluminum |
silver |
$625.00 |
efxhdt |
 |
|
up to 123/4" |
Stainless
Steel |
silver |
$985.00 |
efxhdt-ss |
|
|
More Info.
Designed to be used on
flagpoles that have up to a 12-3/4" outside top diameter with a female
fitting or pole top adaptor. Extra Heavy
duty truck for 3/8" rope halyard.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
|
