RTS-1 Series Flagpole
Truck
External Halyard - Threaded Style -
Rotating - Single Pulley
Fits Flagpole top diameters: up to 31/2"
|
|

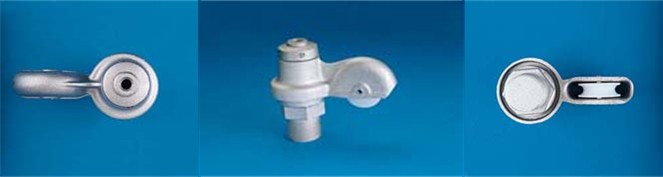

Click for a closer view. |
|
Cast aluminum construction
with a 2" outside diameter cast nylon pulley on a 1/4" stainless steel axle.
This truck is designed to be used on flagpoles that have up to a 3-1/2"
outside top diameter with a female fitting installed. The bottom of the
spindle has a 1-1/4" NPT threading and is screwed into the top of the
flagpole while the top spindle is designed to accept an ornament with a
spindle threading of 1/2"-13NC as standard but can be supplied with other
sizes of threading if desired. The ornament is secured to the truck with a
1/4"-20NC stainless steel set screw. For ease of rotation, product life and
strength, these trucks utilize self-lubricating ball bearing assemblies. The
recommended maximum halyard diameter is 5/16".
More... |
RTS-1 Series Flagpole Truck
External Halyard - Threaded
Style - Rotating - Single Pulley |
| Flagpole Diameter |
Color |
Price |
Model |
Purchase |
|
up to 31/2" |
silver |
$69.50 |
efrts-1-125 |
 |
|
More Info.
Designed to be used on
flagpoles that have up to a 3-1/2" outside top diameter with a female
fitting or pole top adaptor. Medium
duty truck for 5/16" rope halyard.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
|
