IH-1 Series Flagpole Truck
Internal Halyard - Cap Style -
Stationary
Fits Flagpole top diameters: 3" to 31/2"
|
|

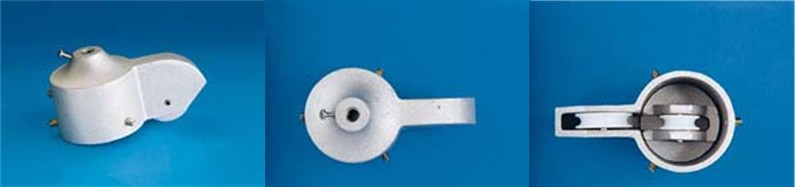

Click for a closer view. |
|
Cast aluminum construction for
use on rope style internal halyard flagpoles. A small pulley assembly is
added to the inside of a standard outrigger style truck to allow the halyard
to feed from inside the flagpole. The pulley assembly has a 1 7/16" outside
diameter cast nylon pulley on a 1/4" stainless steel axle and is held in
place inside the truck by 5/16"-18NC stainless steel set screw. The truck
has a 2" outside diameter cast nylon pulley on a 1/4" stainless steel axle
and is designed to slip over the top of the flagpole and be secured with
three 5/16"-18NC stainless steel set screws. The top of the truck will
accept an ornament with 1/2"-13NC threading as standard. Recommended max
rope diameter is 5/16".
More... |
IH-1
Series Flagpole Truck
Internal Halyard - Cap
Style - Stationary |
| Flagpole Diameter |
Color |
Price |
Model |
Purchase |
|
3" |
silver |
$59.50 |
efih-1-3 |
 |
|
31/2" |
silver |
$79.50 |
efih-1-35 |
|
|
More Info.
Designed to fit
over the top of aluminum, steel, or fiberglass flagpoles. Truck for 5/16" rope halyard.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
|
