IH-2 Series Flagpole Truck
Internal Halyard - Cap Style -
Revolving - Wire Halyard
Fits Flagpole top diameters: 3" to 71/2"
|
|

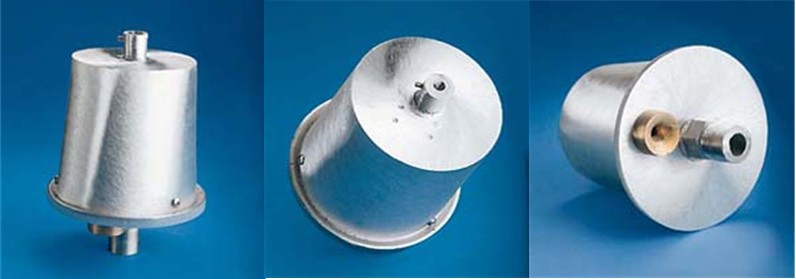

Click for a closer view. |
|
All of these cast aluminum
trucks have a 1 1/4" NPT threaded spindle which screws into the top of the
flagpole where a female fitting has been installed. The top of all trucks are
designed to accept an ornament with a spindle threading of 1/2"-13NC as
standard but can be supplied in other sizes of threading. The ornament is
secured to the truck with a size 1/4"-20NC stainless steel set screw. The
extra large model has a stainless steel sealed lubricant bearing assembly
while all other sizes utilize stainless steel ball bearings in both the
upper and lower bearing races. All Sizes are supplied with a
stainless steel bushing at the cable exit point except the IHT-3 which has a
bronze fitting.
More... |
IH-2
Series Flagpole Truck
Internal Halyard - Cap
Style - Revolving |
| Flagpole
Top Diameter |
Color |
Price |
Model |
Purchase |
|
3" |
silver |
$190.00 |
efih1-vr |
 |
|
4" |
silver |
$280.00 |
efiht-1 |
|
|
5" |
silver |
$340.00 |
efiht-2 |
|
|
7 1/2" |
silver |
$690.00 |
efiht-3 |
|
|
More Info.
Designed for use with stainless steel wire halyards.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
