IHT-VS Series Flagpole Truck
Internal Halyard - Threaded Style -
Stationary
Fits Flagpole top diameters: up to 31/2"
|
|

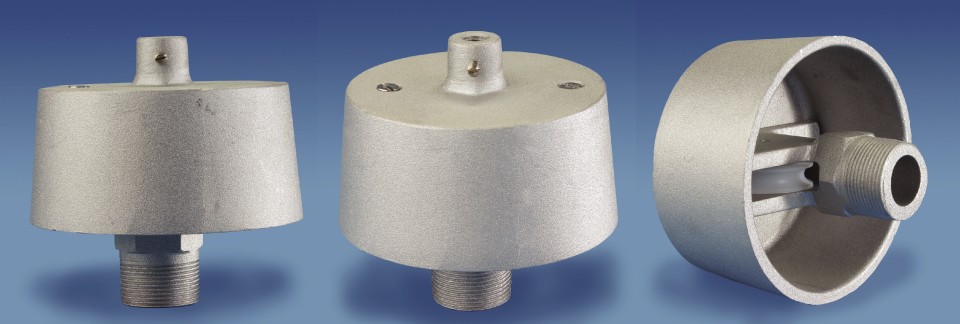

Click for a closer view. |
|
Cast aluminum construction for
use on rope style internal halyard flagpoles. A small pulley assembly is
affixed to the inside of the truck housing to allow the halyard
to feed from inside the flagpole. The pulley assembly has a 1-7/16" outside
diameter cast nylon pulley on a 1/4" stainless steel axle. This truck
is designed to be used on flagpoles that have up to 3-1/2" outside top
diameter with female fitting installed. The bottom spindle has a 1-1/4" NPT
threading and is screwed into the top of the flagpole. The top of the truck will
accept an ornament with 1/2"-13NC threading as standard but can be
supplied with other sizes of threading. The ornament is secured
to the truck with a 1/4"-20NC stainless steel set screw. Recommended max
rope diameter is 5/16".
More... |
IHT-VS
Series Flagpole Truck
Internal Halyard - Threaded
Style - Stationary |
| Flagpole Diameter |
Color |
Price |
Model |
Purchase |
|
31/2" |
silver |
$79.500 |
efiht-vs |
 |
|
More Info.
Designed to the top of aluminum, steel, or fiberglass flagpoles. Truck for 5/16" rope halyard.
Additional color options; bronze, white and black are available in shopping
cart. |
|
|
|
|
